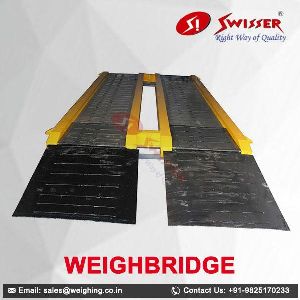

Pitless Weighbridge

We have hired dedicated professionals for checking the quality of the products against various parameters. One can approach us anytime for placing orders and expect safe and timely deliveries of the same.


Benefits :

  • Modular Design
  • Needs no foundation
  • Installation in hours
  • Can be shifted to another site easily
  • Keeps vigil on costly materials
  • Significantly saves time & construction cost
  • Most suited for temporaries



Features :

  • 5 Tf to 100 Tf.
  • Multicolumn Construction.
  • Hermetically Sealed - IP 68.
  • Complete Environmental Protection.
  • Accuracy better rhen 0.025% of Full Scale Output.
  • Low Profile Design.


Applications :

  • Rubbish for landfill sites
  • Demolition materials ex site
  • Quarries
  • Construction industry
  • Forestry
  • Rolling materials
  • Agriculture industry
  • Military


Size And Capacities

Platform
Size( Mtr.)		 Capacity
(Ton)		 Graduation
(kg)		 Number of
Load cells		 Size of Capacities
4.5 X 2.5 10 2 Kg. 4
6 X 2.5 20 2 Kg. 4
7.5 X 3 30 5 Kg. 4 All models are available from
8X3 30/40 5 Kg. 4 7.5 X 3m. up to
20 X 3m.
9X3 40/50 5 Kg. 4 Standard capacities range from
1OX3 40/50 5 Kg. 4 20,000 up to
1,00,000 Kg Other
12 X 3 50 5 Kg. 6 Platform sizes and capacities also
14 X 3 50/60 10 Kg. 6 possible to suit individual requirements
15X3 50/60 10 Kg. 6 and regulations. Load cell range
16 X 3 50/60 10 Kg. 6 includes explosion proof
18X3 60/80/100 10 Kg. / 20 Kg 8 ad cells also.
20X3 80/100 10 Kg. / 20 Kg 8
* Specifications subject to change without notice

Specifications

  Compression Type Double Ended Shear Beam
Excitation Voltage 20VDC 10VDC-Maximum 15 VDC
Nominal Output 2.0 mV/V 3.0 mV/V
Non-Lonearity <+0.025%FSO <+0.025 %FSo
Hysteresis <+0.03%FSO <+0.02 %FSo
Non-Repeatalability <+0.02%FSO <+0.01 %FSo
Creep(30 minutes) <+0.03%FSO <+0.03 %FSo
Zero Balance + 1.0%FSO +1.0%FSO
Input Resistance 450 + 2.0 Ohms 770 + 20.0 Ohms
Output Resistance 480 + 2.0 Ohms 700 + 20.0 Ohms
Insulation Resistance > 1000 Mega Ohms at 50   VDC > 1000 Meg Ohms at 50 VDC
Safe Overload 150 % of Rated Capacity 150 % of Rated Capacity
Ultimate Overload 300 % of Rated Capacity 300 % of Rated Capacity
Side Load Discrimination 500:01:00 500:01:00
Allowable Side Load 10.00% 50% of Rated Capacity
Temp. Compensated Range 0-60'C 0-60'C
Temp. Effect on Output <0.0015% FS)/'C <0.0015% FSOP/'C
Temp. Effect on Zero <0.0020% FS)/'C <0.0020% FSOP/'C
Deflection <0.4 m of rated load <0.5 mm at FSO
Finish Epoxy Enamel Electroless Nickel Plated Tool Steel
Environmental Protection Class IP68* IP68*
